Retaining walls in the Chicago area fail because of water, not weight. Soil that cannot drain holds water against the back of the wall and pushes with hydrostatic pressure, and in winter that same trapped water freezes and expands. The Chicago Building Code sets frost protection at 42 inches below final grade (2019 Chicago Building Code, Section 1809.5), so a wall whose base sits shallower than that is built inside the layer of ground that moves every winter. The fix is not a stronger wall. It is a drainage layer that never lets the water load the wall in the first place.
That is the short version. It matters because most failed walls here were built with some of the drainage system and not all of it, which fails just as reliably as building none of it. Below is how water and frost load a wall on Chicago clay, what a correct drainage assembly contains, how deep the base has to sit, and how to tell from the outside that a wall was built without any of it. If your wall is already moving and you are searching for a retaining wall contractor near me, that page covers how we build and rebuild walls across Skokie, Evanston and the North Shore.
How Water Loads a Wall in Chicago Clay
A retaining wall holds back soil. Once that soil is saturated, the wall is also holding back the water in it, and water pushes in every direction at once. Fixr states the mechanism plainly: drainage is essential because water usually cannot pass through the wall, and without it, pressure builds in the soil behind and makes the wall more likely to break or crack.
Why clay makes it worse
Soil is sand, silt and clay in some ratio, and the ratio decides how fast water leaves. University of Illinois Extension puts it directly: soils that are primarily sand have more pore space and drain quickly, while clay soils have less pore space, which slows water movement through the profile and holds water for extended periods. Extension also notes that compaction, from construction equipment or even repeated foot traffic, compresses soil pores and further limits water movement. A yard that saw excavation and heavy equipment during a wall build is compacted ground by definition.
The test you can run on your own soil
Illinois Extension describes a percolation test any homeowner can run: dig a hole at least 12 inches deep and 4 to 12 inches wide, fill it and let it drain completely to saturate the surrounding soil, then refill it and measure the drop after 15 minutes. Multiply that drop by four for the hourly rate. Extension calls 1 to 3 inches per hour desirable, and less than 1 inch per hour poorly drained. If your soil is in that last category, the drainage layer behind a wall is not detailing, it is the structure.

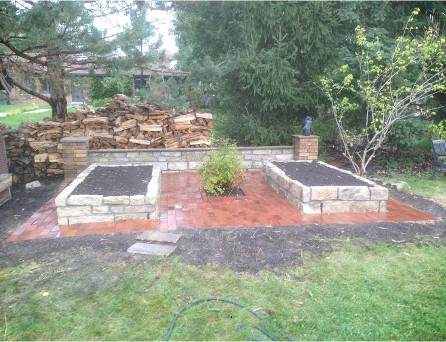

Frost Heave: What a Chicago Winter Does to the Bottom of the Wall
Water expands as it freezes. Inside the soil behind or beneath a wall, it lifts whatever sits in that frozen layer, then drops it again on the thaw. Repeat that through a Chicago winter and a wall that was level in November is not level in April.
The code sets the target. The 2019 Chicago Building Code, Section 1809.5, requires foundations and other permanent supports of buildings and structures to be protected from frost, the first listed method being to extend at least 42 inches below final grade. Section 1809.4 sets a minimum footing depth and width of 12 inches. Suburban village codes differ, so confirm the depth your village enforces before anyone digs.
Freeze-thaw also attacks the wall units themselves. Allan Block's product specification notes that dry-cast segmental units are susceptible to freeze-thaw degradation from de-icing salts and cold temperatures, a specific concern in northern states, and recommends raising compressive strength to 4,000 to 5,800 psi, reducing water absorption, and requiring a current freeze-thaw test report from the supplier in cold climates. On poured concrete, HomeAdvisor notes walls may need an extra $30 to $100 per linear foot for footings and pilings over four feet high or in freeze-thaw climates, specifically to prevent cracking.
Retaining Wall Drainage, Component by Component
A drainage assembly behind a segmental wall is a short list of parts, each doing one job. The specifications below are from Allan Block's residential installation manual and commercial product specification.
| Component | What it does | Published specification |
|---|---|---|
| Base trench | Gives the wall a compacted, level foundation below grade | 24 in. wide; 18 in. for walls under 4 ft (Allan Block) |
| Base depth | Sets how much block gets buried, which resists sliding and erosion at the toe | 6 in. plus 1 in. per foot of wall height; 4 in. plus buried block for walls under 4 ft (Allan Block) |
| Base material | Spreads the load and drains under the wall | 4 in. minimum for walls under 4 ft; 6 in. minimum over 4 ft, compacted (Allan Block) |
| Drain pipe | Collects water at the lowest point and carries it out of the wall | Required for any reinforced wall, gravity walls over 4 ft, or poor-drainage sites; placed at the lowest point toward the back of the trench; vented to daylight every 50 ft (Allan Block) |
| Wall rock (drainage stone) | Gives water a fast path down to the pipe instead of into the soil mass | Well-graded compactable aggregate 0.25 in. to 1.5 in., no more than 10% passing the #200 sieve; fills the block cores and a minimum of 12 in. behind the block (Allan Block) |
| Infill and compaction | Locks the reinforced mass together so it behaves as one block of soil | Lifts no more than 8 in., minimum two passes with a plate compactor; heavy clays and organic soils are not to be used in the reinforced mass (Allan Block) |
| Filter fabric | Keeps fine soil out of the drainage stone | Horizontal fabric above the wall rock column; vertical fabric not suggested in cohesive soils (Allan Block) |
| Top course finish | Stops surface water from running down the back of the blocks | Backfill the last course with organic soil rather than infill (Allan Block) |
| Weep holes | Retrofit outlet through the face of an existing wall | $60-$75 per sq ft drilled (Angi); drainage retrofit $50-$80 per sq ft (HomeGuide) |

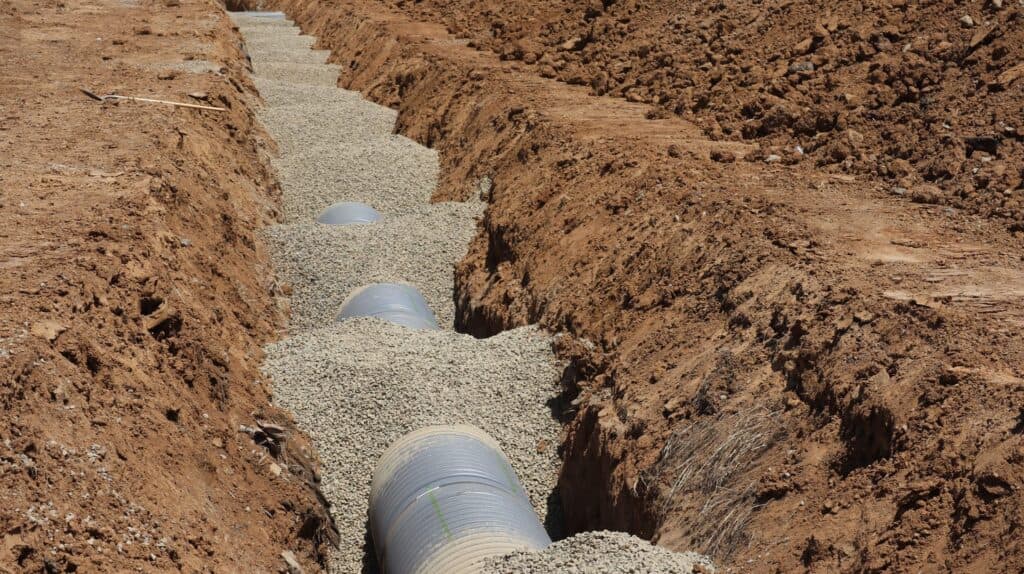

The drain pipe and where it ends
The pipe is the part most often installed and then defeated. Allan Block requires drain pipes to be properly installed and either vented to daylight or connected to an underground drainage system, with a grading plan that routes water away from the wall. A pipe that runs behind a wall and stops, or daylights into a low spot that fills with water, is a decoration. Vent it every 50 feet and put the outlet where the water will actually leave.
Filter fabric is not automatic on clay
This is where a lot of well-meant work goes wrong locally. Allan Block's specification states that vertical filter fabric is not suggested with cohesive soils, because clogging creates unacceptable hydrostatic pressures in soil-reinforced structures; where filtration is needed in cohesive soils it calls for a three-dimensional filtration system of clean sand or filtration aggregate instead. Horizontal fabric belongs above the wall rock column, to stop soil from migrating down into the stone. Chicago-area clay is a cohesive soil, so wrapping the back of the drainage stone in fabric can produce exactly the pressure the drainage was meant to relieve.
Base Depth, Embedment and Geogrid
Everything above the base is only as good as the base. Allan Block's residential rule is a base trench 24 inches wide, dug 6 inches deep plus an inch for every foot of wall height to account for buried block, with at least 6 inches of compacted wall rock in it. The manual is blunt about local conditions: if the foundation soils at the bottom of the trench are heavy clay or wet soils, or the area was previously excavated, that material must be removed and replaced with granular material compacted in lifts of 8 inches or less. The commercial specification calls for foundation soil compacted to a minimum of 95% Standard Proctor before the base goes in.
Taller walls, and walls with a slope or load above them, need reinforcement rather than mass. Geogrid is a synthetic mesh laid horizontally into the backfill so the soil behind the wall becomes a reinforced block instead of loose fill pushing on a face. Allan Block places it on top of a course, extended back over compacted backfill per the approved plan, typically every other course, pulled taut and staked, with a firm instruction never to drive or compact directly on the grid. For walls taller than 6 feet it sends you to the commercial manual, which is another way of saying those walls get engineered.
How to Tell a Wall Was Built Without Drainage
You cannot see the back of a wall, but one built without drainage tells on itself.
- No outlet anywhere along the base. Walk the low end of the wall. If there is no pipe end, no weep hole and no gravel visible at the toe, water has no designed exit.
- Water or white residue on the face. Efflorescence is salt carried through the wall by water that then evaporated, which means water chose the wall as its route out.
- The wall stays wet or dark long after rain. A drained wall sheds water within hours; a saturated one holds it for days.
- A bulge in the middle with straight ends. Pressure is concentrated at one point, usually because water pools behind that section.
- Soil sinking or a trough forming along the top. Fines are migrating out through the wall, which means no filtration layer is separating soil from stone.
- Angi's unsalvageable list. Shallow footings, lack of weep holes, significant leaning and wide cracks are the four signs Angi names as a wall no longer worth saving.
If two or more apply, the question is no longer whether the wall needs drainage but whether it can be saved at all. That decision, and what each fix costs, is covered in our guide to retaining wall repair in Chicago.
Maintenance That Keeps a Wall Standing
A drained wall is a low-maintenance wall, not a no-maintenance one. Fixr recommends checking the drainage pipe and clearing debris every three months, more often in winter when ice and snow can block the outlet. It puts an inspection at $150 to $300, recommended every three to five years, and the average life of a retaining wall at 50 to 100 years depending on material, soil and climate.
Two seasonal habits do most of the work: clear the outlet before the first freeze so meltwater has somewhere to go in a January thaw, and watch where roof and surface water lands after a heavy rain. If you are weighing a rebuild against a repair, the budget side is covered in our breakdown of retaining wall cost in Chicago.
Drainage and Frost Heave: Questions Chicago Homeowners Ask
Does a retaining wall really need drainage?
Yes. Fixr's answer is that drainage is essential because water usually cannot pass through the wall, so without it pressure builds in the soil behind and makes the wall more likely to break or crack. Allan Block requires a drain pipe for any reinforced wall, any gravity wall over 4 feet tall, and any site with poor drainage, which describes most clay lots in the Chicago area.
What gravel goes behind a retaining wall?
Allan Block specifies wall rock as a well-graded, compactable aggregate between 0.25 and 1.5 inches with no more than 10% passing the #200 sieve. It fills the hollow cores of the blocks and a minimum of 12 inches behind the block, full height. Ordinary fill dirt or screenings in that zone traps water instead of moving it, which defeats the purpose of the stone entirely.
How deep does a retaining wall base need to be in Chicago?
Two numbers apply. Allan Block's residential base trench rule is 6 inches deep plus 1 inch per foot of wall height, with at least 6 inches of compacted wall rock in it. Separately, the 2019 Chicago Building Code, Section 1809.5, requires foundations and permanent supports to be frost-protected, listing extension to at least 42 inches below final grade first. Confirm with your village which applies.
Can frost heave move a retaining wall?
Yes, and it is one of the main reasons walls here go out of level. Water in the soil expands as it freezes and lifts whatever sits in the frozen layer, then lets it settle unevenly on the thaw. That is why the code frost depth of 42 inches matters and why Allan Block requires wet or heavy clay foundation soils to be removed and replaced with compacted granular material before the base is placed.
Do I need filter fabric behind a retaining wall in clay soil?
Not vertically. Allan Block's specification says vertical filter fabric is not suggested with cohesive soils because clogging creates unacceptable hydrostatic pressures, and calls for a three-dimensional filtration system of clean sand or filtration aggregate instead. Horizontal fabric above the wall rock column is recommended, to stop soil from above washing down into the drainage stone. Chicago-area clay is a cohesive soil, so this distinction matters locally.
What are weep holes, and can they be added later?
Weep holes are small openings through the face of a wall that let trapped water out, and they can be retrofitted: Angi prices drilling them at $60 to $75 per square foot, and HomeGuide puts adding drainage, by pipe or weep holes, at $50 to $80 per square foot. They relieve pressure on a wall that has none, but they do not replace a stone-and-pipe drainage layer on a rebuild.
When does a retaining wall need geogrid?
When the wall is tall enough, or loaded enough, that its own weight will not hold the slope. Allan Block's residential manual covers walls up to 6 feet and sends anything taller, or any commercial job, to its engineered commercial manual. Grid goes on top of a course over compacted backfill, usually every other course, and is never compacted on directly.
Build It Once, on the Right Base
Almost every failed wall here is a drainage decision made quickly and cheaply at the base, then paid for years later at the face. Stone, pipe, outlet, compaction and base depth are the parts nobody sees and the only parts that decide whether the wall is still straight in twenty winters. R & G Almanza Landscape Inc is a family-owned, insured landscape and masonry crew based in Skokie, working across Skokie, Evanston, the North Shore and the greater Chicago area since 1999, more than 25 years. Call (847) 869-8584 or contact us to have your wall and its drainage looked at.
